Specifications

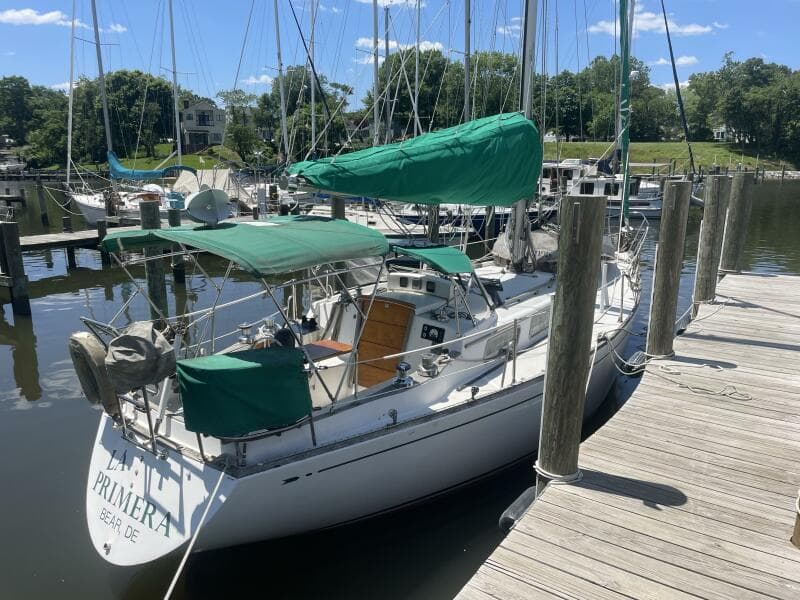

Vessel Name: La Primera Rig: Single spreader masthead sloop Fin keel
Model Year: 1978 H.I.N. BTY355031077
Length Overall: 35.5 ft Beam: 10' 10” Max Draft: 5’ 9” Cabin Headroom 6' 2”
Disp. 15,000 lbs Ballast: 6,500 lbs
Fuel Tank Cap: 36-gal Water Tank Cap: 100-gal Water Heater Cap: 6-gal
Vessel Inventory
HULL & DECK

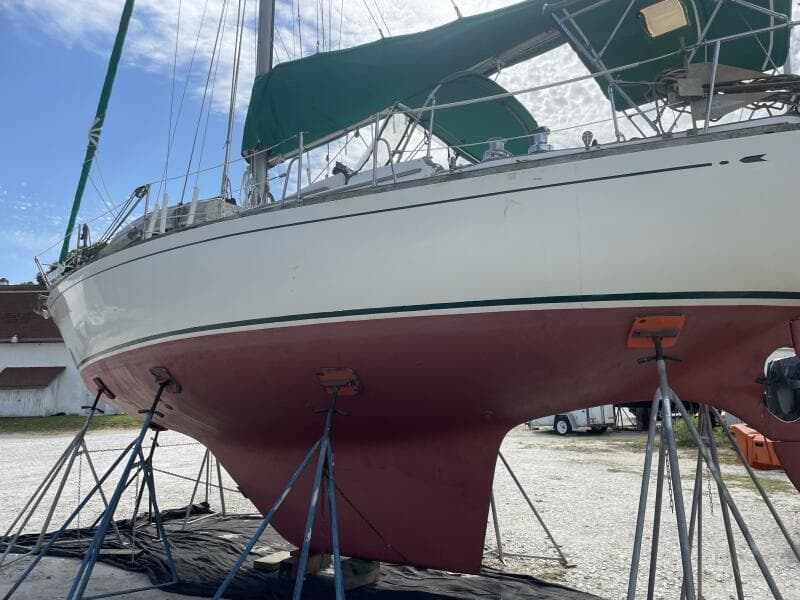

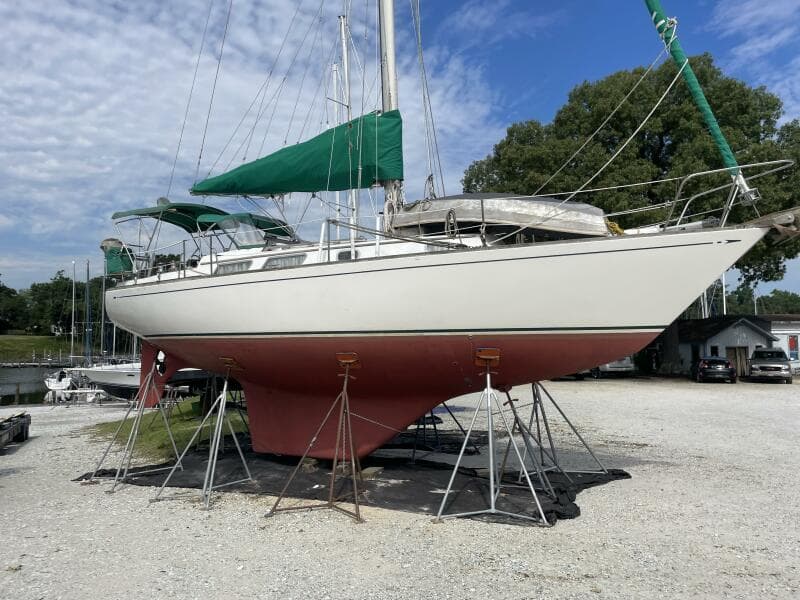

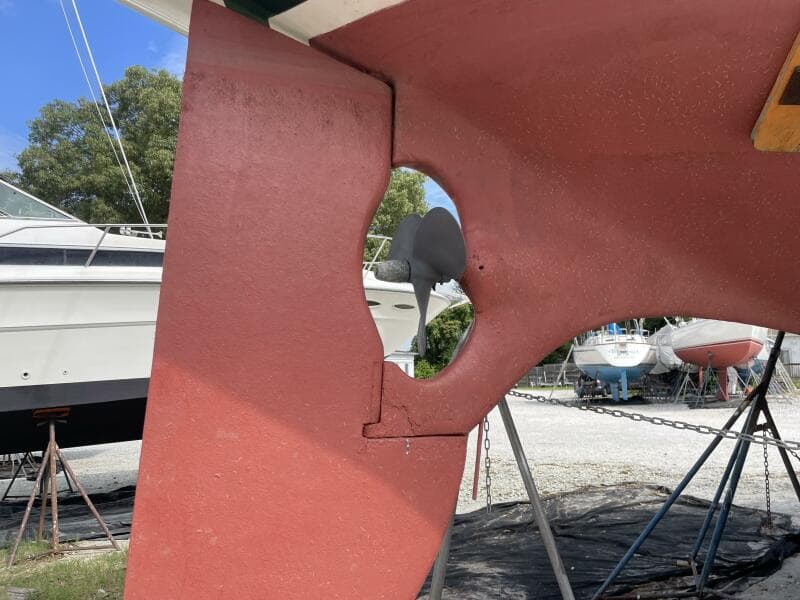

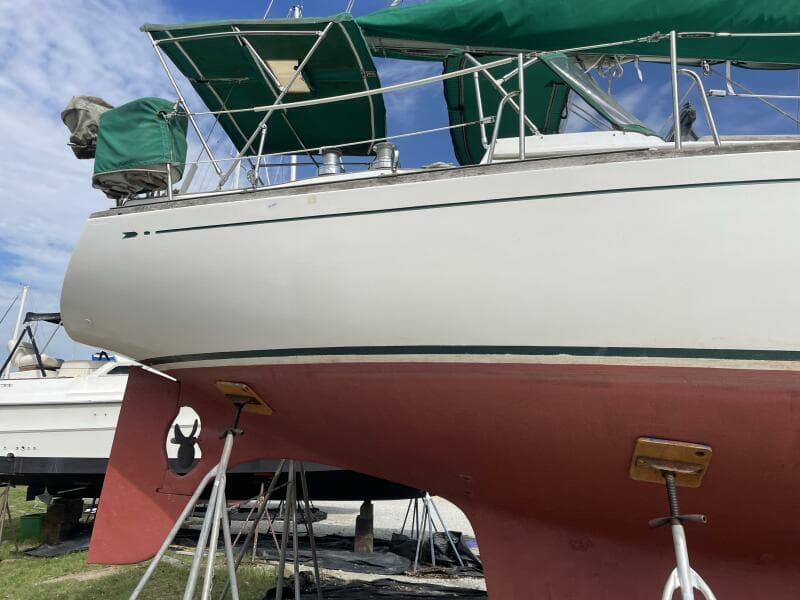

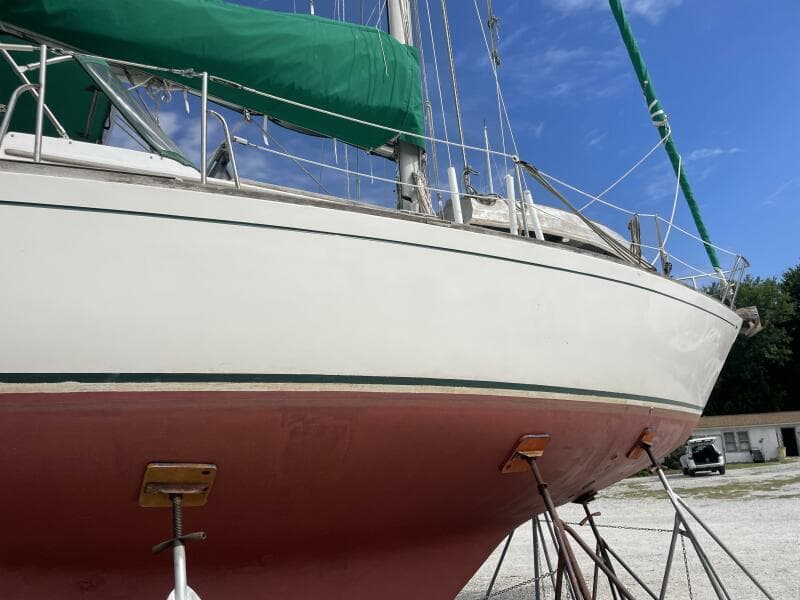

Hull: Solid fiberglass white hull w/ original gelcoat. Fin keel with skeg hung rudder. Three-blade propeller protected in aperture. Bronze seacocks.
Deck & Cabin-top: Off-white fiberglass over balsa cored decks. Foredeck anchor locker w/ manual windlass. Two deck hatches w/ aluminum ports with screens. Unfinished 4" teak toe rails and rub rails. S/S double bow and stern rails and lifelines; S/S stern ladder. Teak Dorade boxes with S/S vents and guards.
STEERING

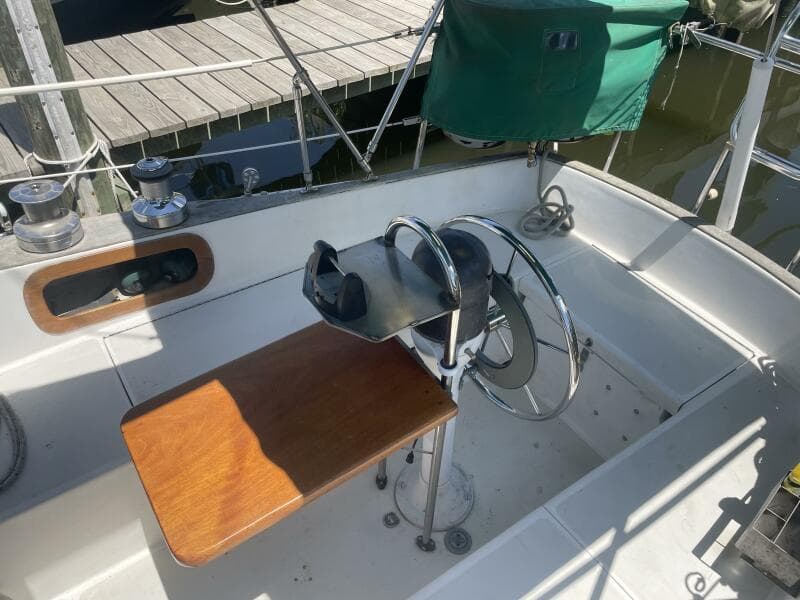

Edson pedestal wheel steering w/ binnacle compass.
Autopilot Wheel Pilot. (2012)
TANKAGE
Fuel: 36 gallons in Steel tank. Fuel lines 2017
Water: 100 gallon integral tank in keel
Holding tank: integral fiberglass tank midships
Hot Water: 6-gal hot water storage tank off engine.
STANDING RIGGING
Aluminum mast and boom.
Stays & Shrouds: Inspected and replaced. (2014)
Harken Roller Furling system. (2014)
Winches: 2 traveler winches and 1 mainsheet winch on cabin top
2 jib sheet winches, and two self tailing jib sheet/spinnaker winches on cockpit coaming
RUNNING RIGGING
Halyards. (2014)
Sheets & Lines. (2014).
Whisker pole.
Mainsheet traveler.
SAILS
Mainsail with two jiffy reefs. (2018)
135% Genoa. (2015)
Phenolic mast track w/ roller bearings 2018
Main sail stack pack. (2018).
ENGINE & MECHANICAL

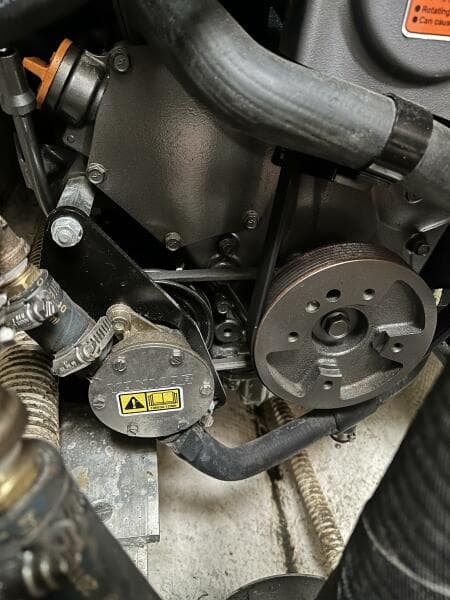

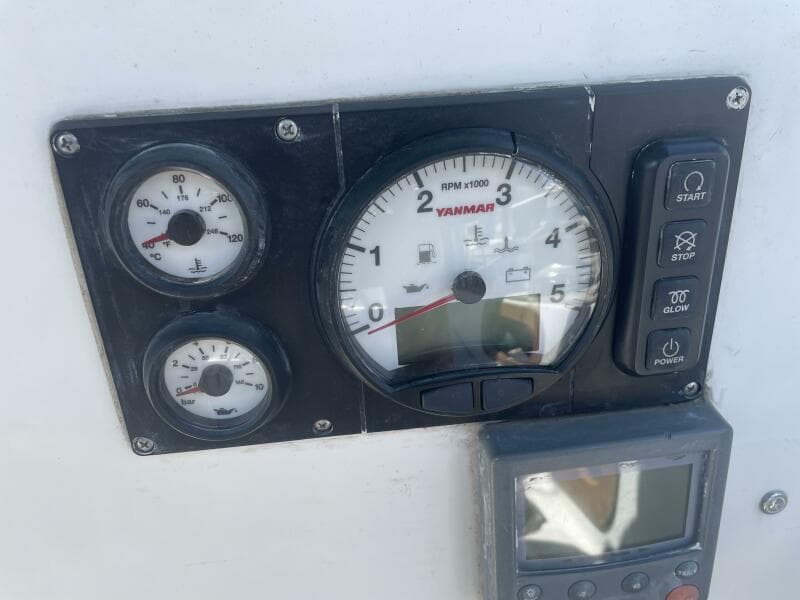

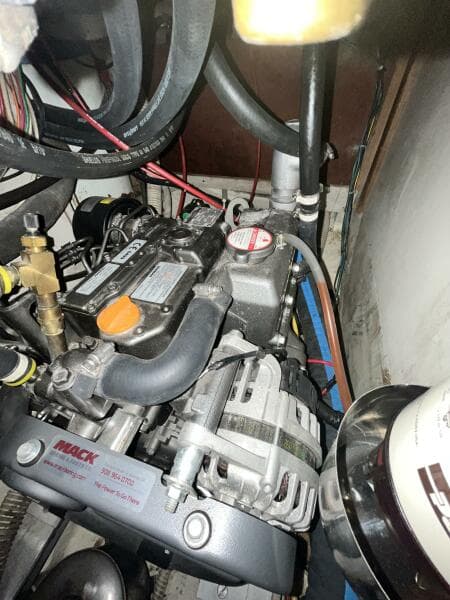

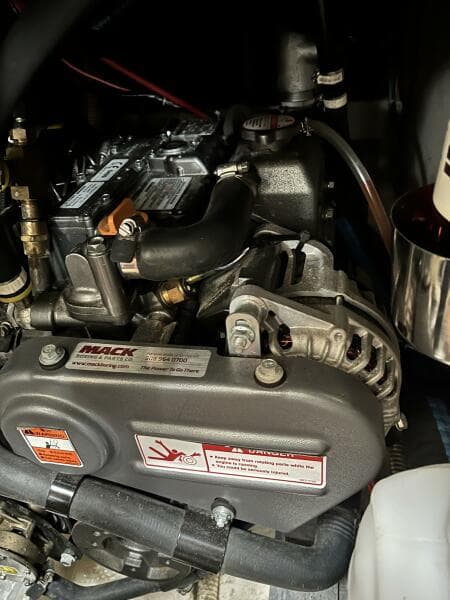

Yanmar 3YM30 diesel, 30 hp, 3-cylinder, FWC. (2017)
New transmission & heat exchanger. (2017)
65 engine hours
New engine mounts (2017)
New cutlass bearing (2025) - shaft alignment to be completed upon launch
ELECTRICAL
12V DC & 110V AC power.
30-Amp shore power receptacle & cable 25’
One (1) Group 27 AGM engine start battery. (2022)
One (1) Group 25 Deep Cycle AGM house batteries. (2023)

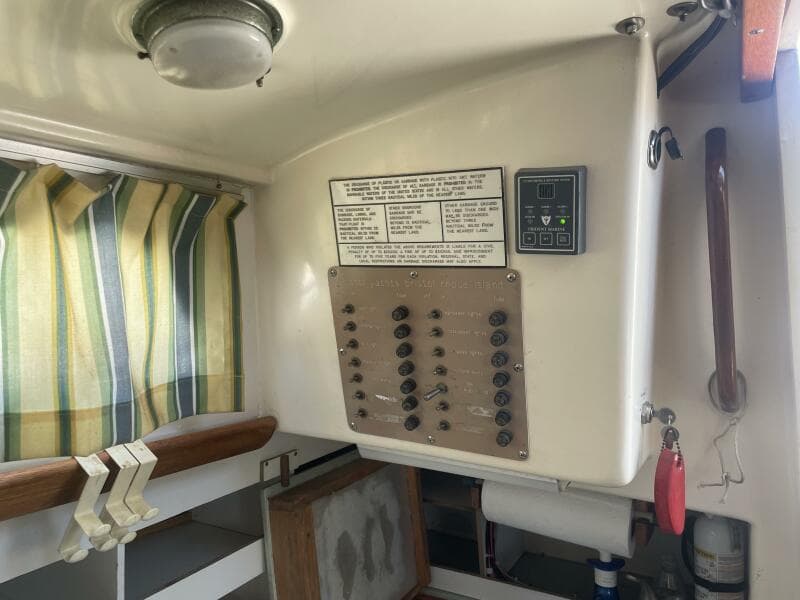

AC-DC circuit breaker panels
ELECTRONICS

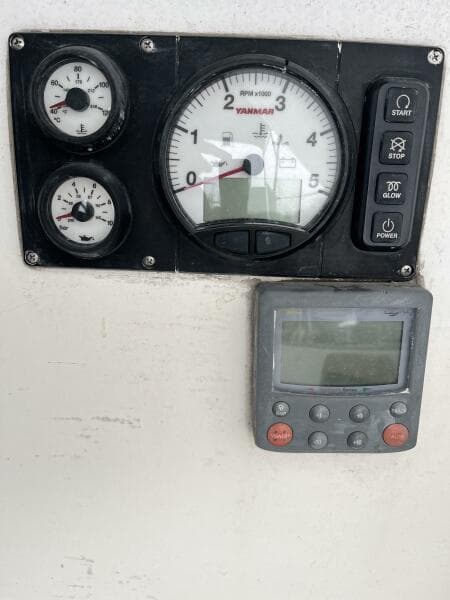

Raymarine ST4000 autopilot. (2012)

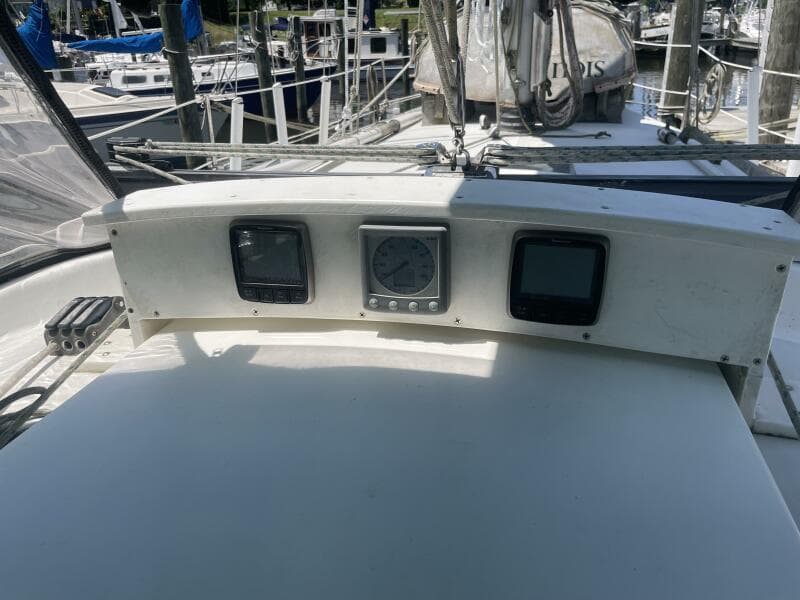

Raymarine depth
Raymarine) wind speed and direction.
Raymarine speed knot meter
GPS: Raymarine A50 chart plotter
VHF radio w/ masthead antenna. Handheld ICOM VHF
GROUND TACKLE
Anchors:

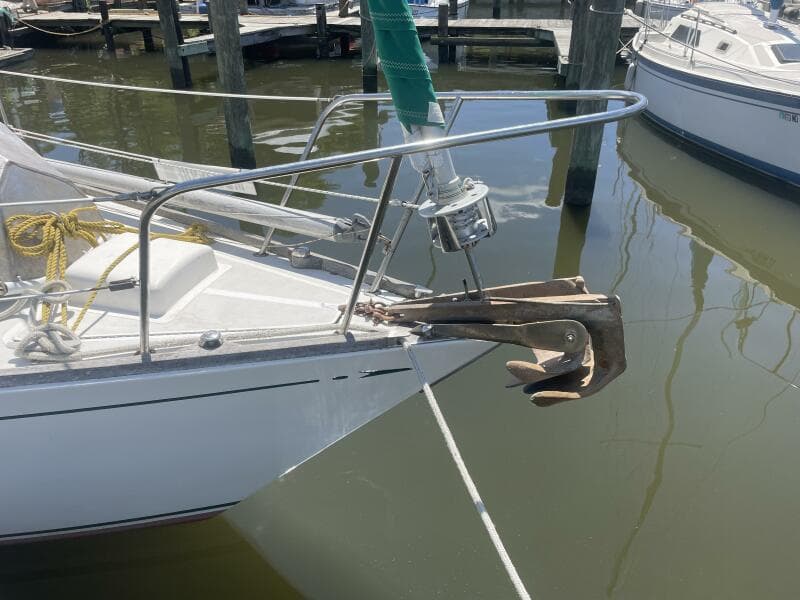

- 45# Lewmar Claw on 200’ of 5/16” chain.
- 30# Lewmar Claw on 30’ of chain & ½” rode 200’
- 20# Danforth stern anchor w/ 150’ of ½” rode.
Windlass: Sea Tiger (Simpson-Lawrence). (<2002)
PLUMBING
Bilge Pump (1): Rule 360 GPH.
Bilge Pump (2): Hand operated Whale Gusher

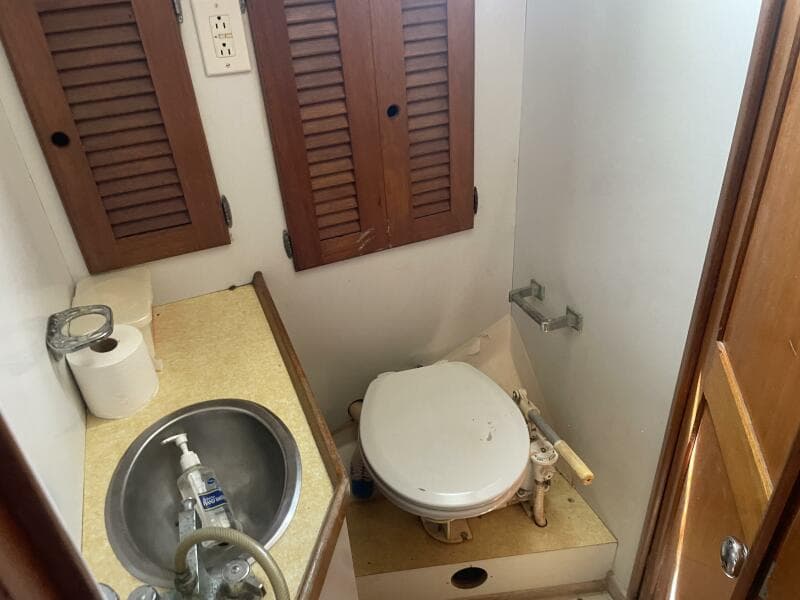

Head: Raritan
CANVAS

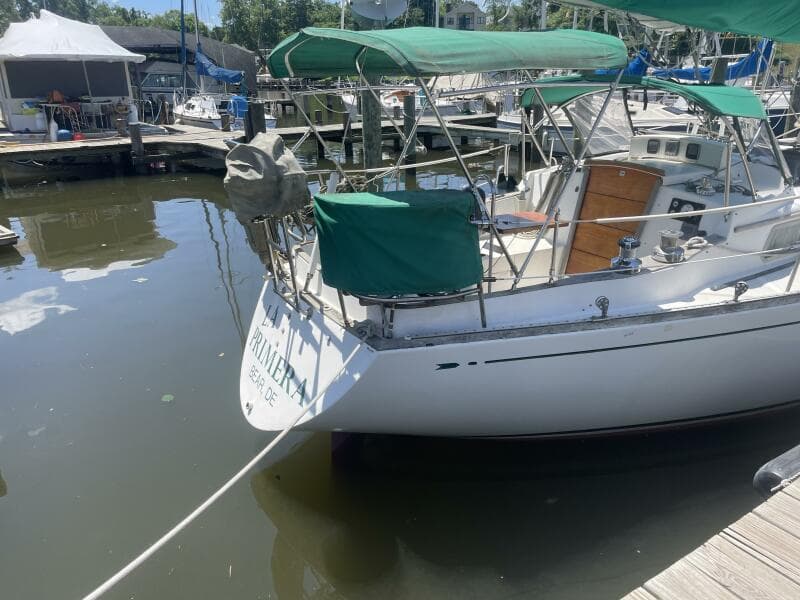

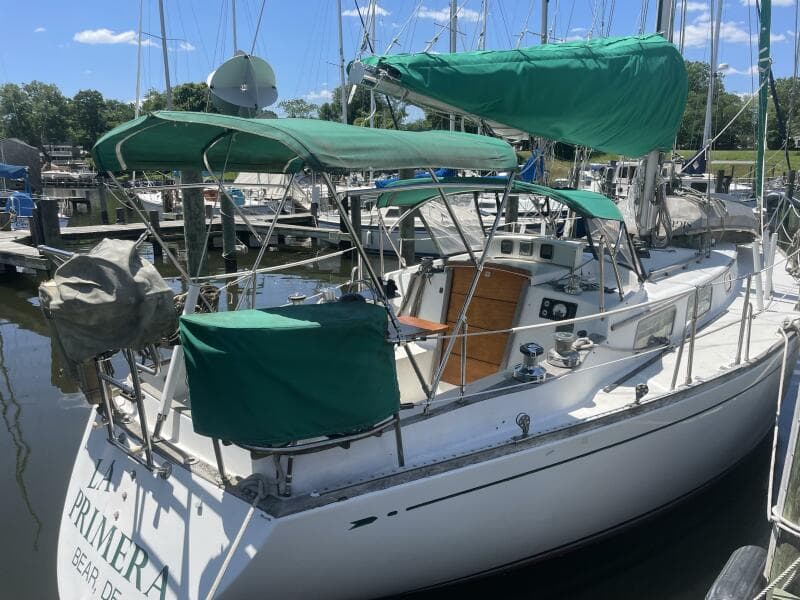

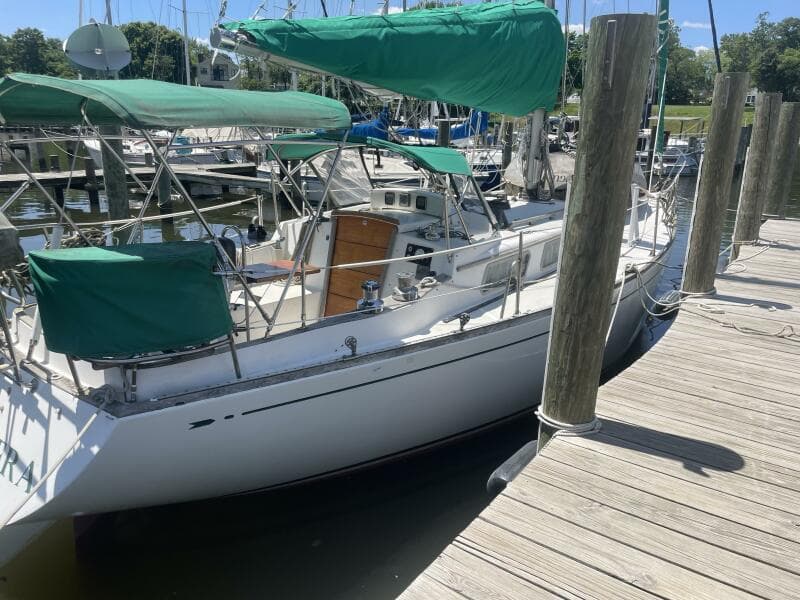

Dodger & Bimini S/S frames. Dodger frame pre 2009 Bimini frame 2010
Main sail boom cover. Stack Pack 2017
Dodger & Bimini (fair condition). (2009)

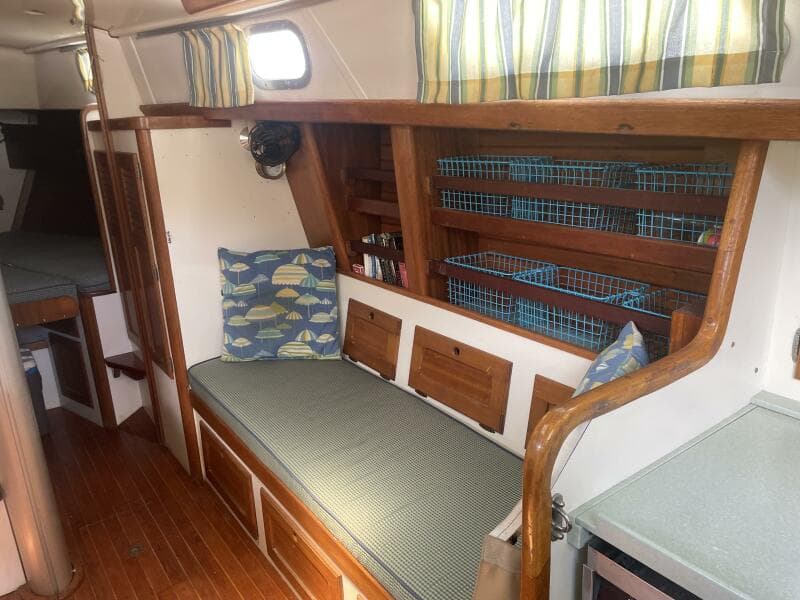

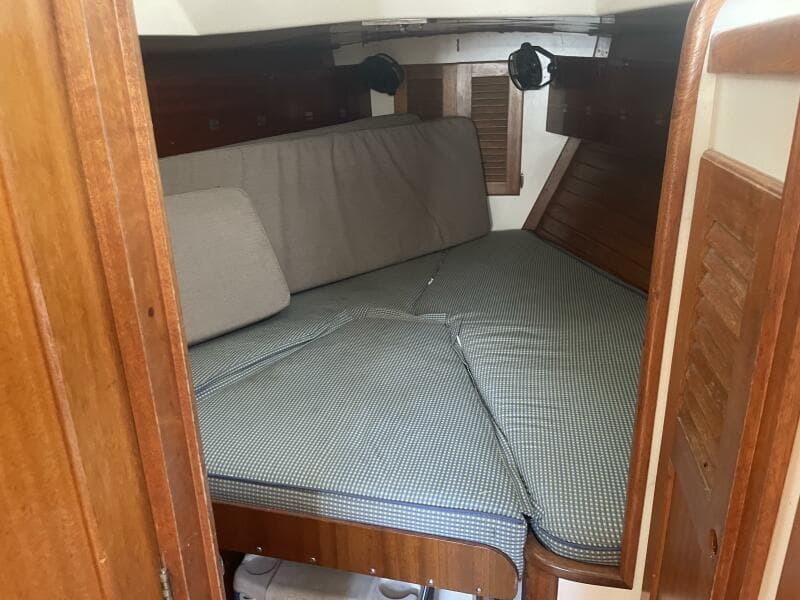

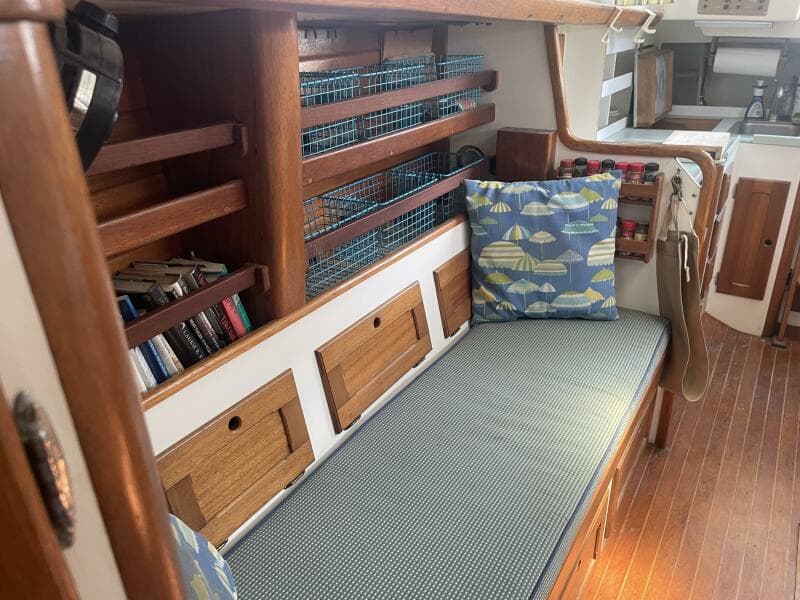

Cockpit & cabin cushions. Cockpit cushions 2018, Cabin cushions 2015
SAFETY EQUIPMENT
PFDs: 6 type 1, various age
Fire Extinguishers: Dry chemical 2023
Distress Signals: Flares
Sound Devices: Bell, Hand held air horn
Lima Yachts is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Annapolis Sailyard. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
